Shovelnose

Overview
Accessible, permitted and funded.

Westhaven's flagship property, the Shovelnose Gold Project, is high-grade, low-cost underground gold project 2.5 hours from Vancouver — with over a million ounces in the ground, a compelling PEA, and a 50,000-metre drill program actively underway.

Location

~30km southeast of Merritt, British Columbia

Stage

Exploration and resource development (3 gold deposits)

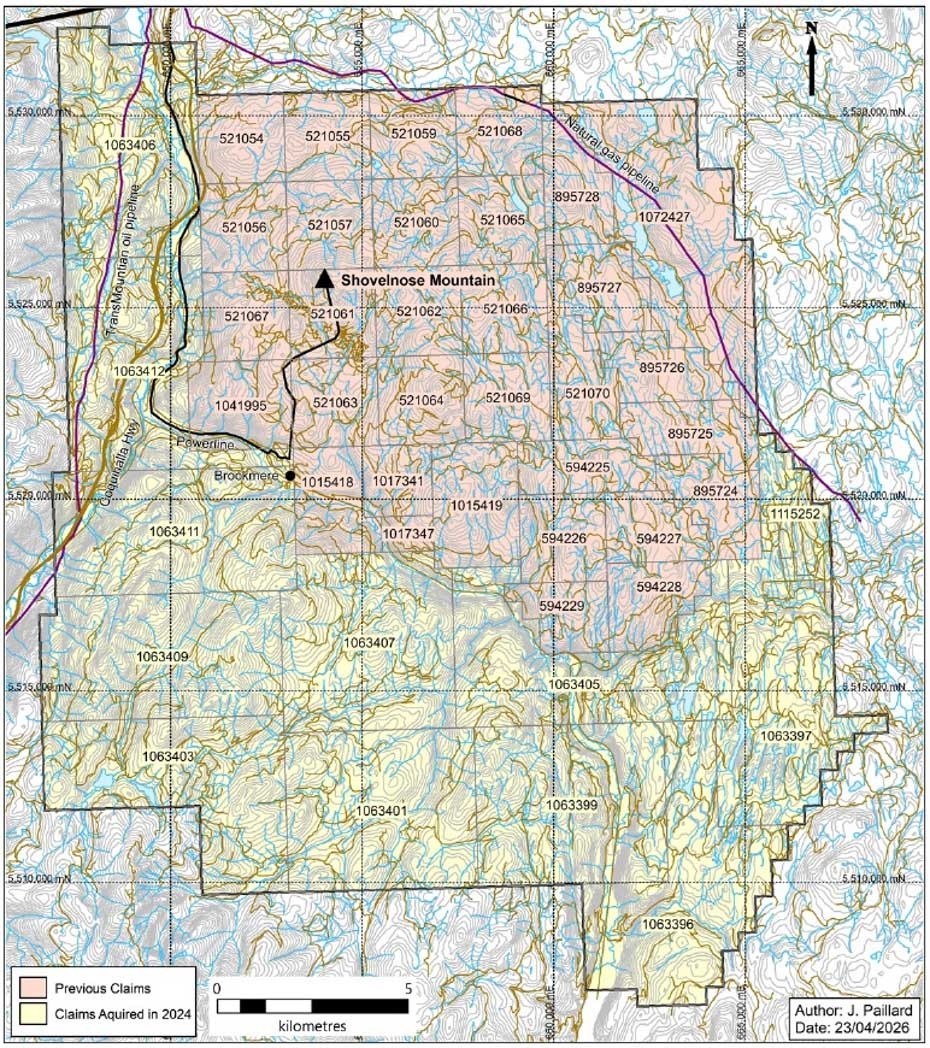

Land Package

~40,385 hectares

Mineralization

High grade gold and silver in low- sulphidation epithermal systems

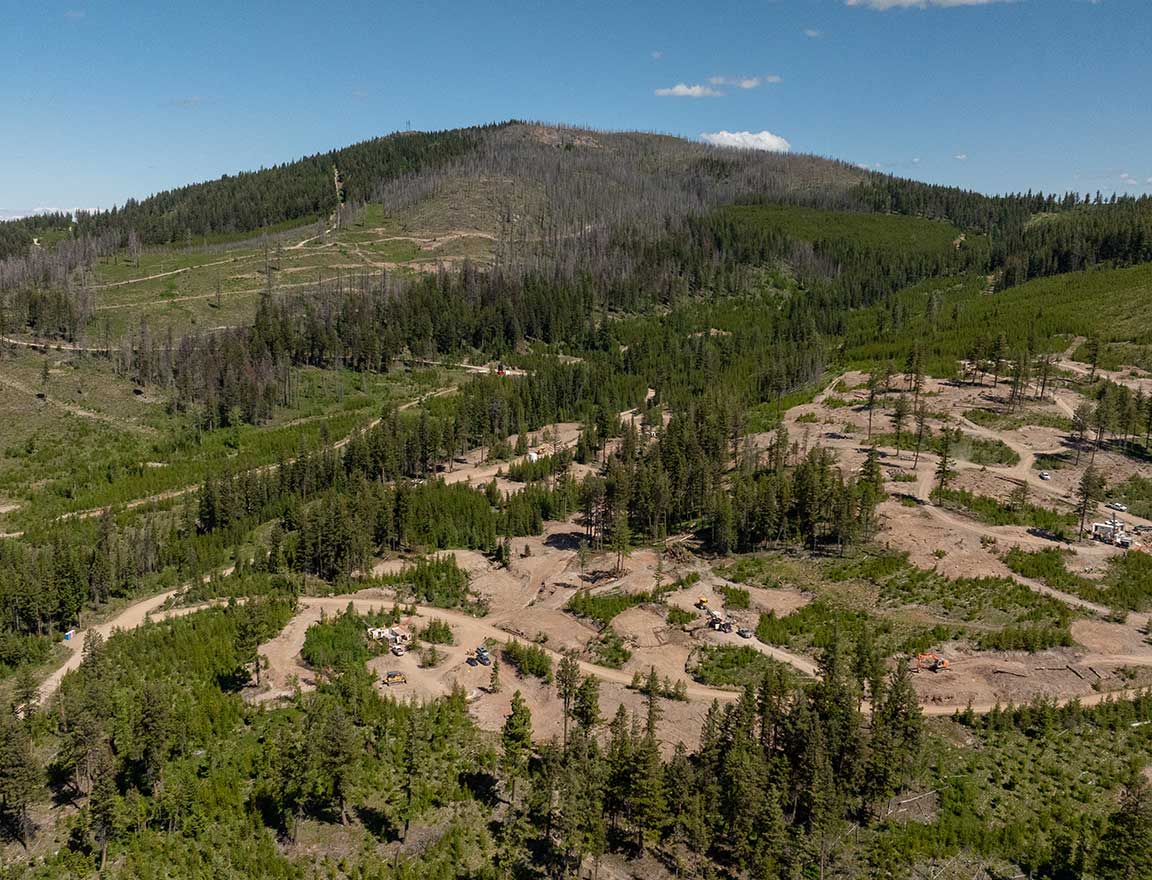

Shovelnose Map
Car Icon2.5-hour drive from Vancouver
Timer Icon30 minutes from Merritt
Road IconCoquihalla Highway crosses property
Tree IconHeavily logged, >900km of forestry roads
Lightning IconPowerline on property and natural gas pipeline
Compass IconYear-round exploration

Robust Preliminary Economic Assessment:

On March 3, 2025, the company announced an Updated Preliminary Economic Assessment (the “2025 PEA”) of a potential mine development on the Shovelnose Gold Project. Link to news release.

The 2025 PEA* outlines a robust, low-cost, rapid pay-back, high margin, 11.1-year underground gold mining opportunity and was based on updated mineral resources that include contributions from the South Zone, Franz and FMN deposits.

Preliminary Economic Assessment

Key Highlights:

Shovelnose 2025 PEA Economics (@US$2,400/oz gold, US$28/oz silver)*

Robust Project Economics
US$2,400/OZ Au | US$28/OZ Ag
$454M
After tax NPV 6%
43.2%
After-tax IRR

Low-cost Production

  US$836/oz AuEq AISC

 $184M preproduction capex

  2.1 year after-tax pay back

High Grade Resource @ 1.3 g/t AuEq Cut-Off

INDICATED

3,437 tonnes

grading 6.50 g/t AuEq


718.6 koz AuEq

677.2 koz Au & 3564.5 koz Ag

INFERRED

2,292 tonnes

grading 3.96 g/t AuEq


292.0 koz AuEq

270.3 koz Au & 1,859.5 koz Ag

Cash Flow Generation

INDICATED

11.1 year mine life

1,000 tonnes per day

Metallurgical recoveries of 91.5% Au and 92.9% Ag 2.1 year after-tax pay back

All amounts are in Canadian Dollars unless otherwise noted and based on base case parameters of US$2,400 per ounce gold, US$28 per ounce silver and CDN/US exchange rate of $0.72

*The PEA was prepared for Westhaven Gold Corp. by P&E Mining Consultants Inc. in accordance with NI 43-101 – Standards of Disclosure for Mineral Projects. Please see the technical report dated April 17th, 2025 titled: Updated Preliminary Economic Assessment and Mineral Resource Estimate of the Shovelnose Gold Project, British Columbia with an effective date of February 28, 2025. PEA base case parameters of US$2,400 per ounce gold, US$28 per ounce silver and CDN/US$ exchange rate of $0.72. AISC refers to All In Sustaining Costs as defined per World Gold Council guidelines, less corporate G&A. AuEq refers to gold equivalent ounces (gold + silver at an Au:Ag ratio of 86:1). PEA is preliminary in nature and includes Inferred Mineral Resources that are considered too speculative geologically to have economic considerations applied to them that would enable them to be classified as Mineral Reserves, and there is no certainty that the PEA will be realized. Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability

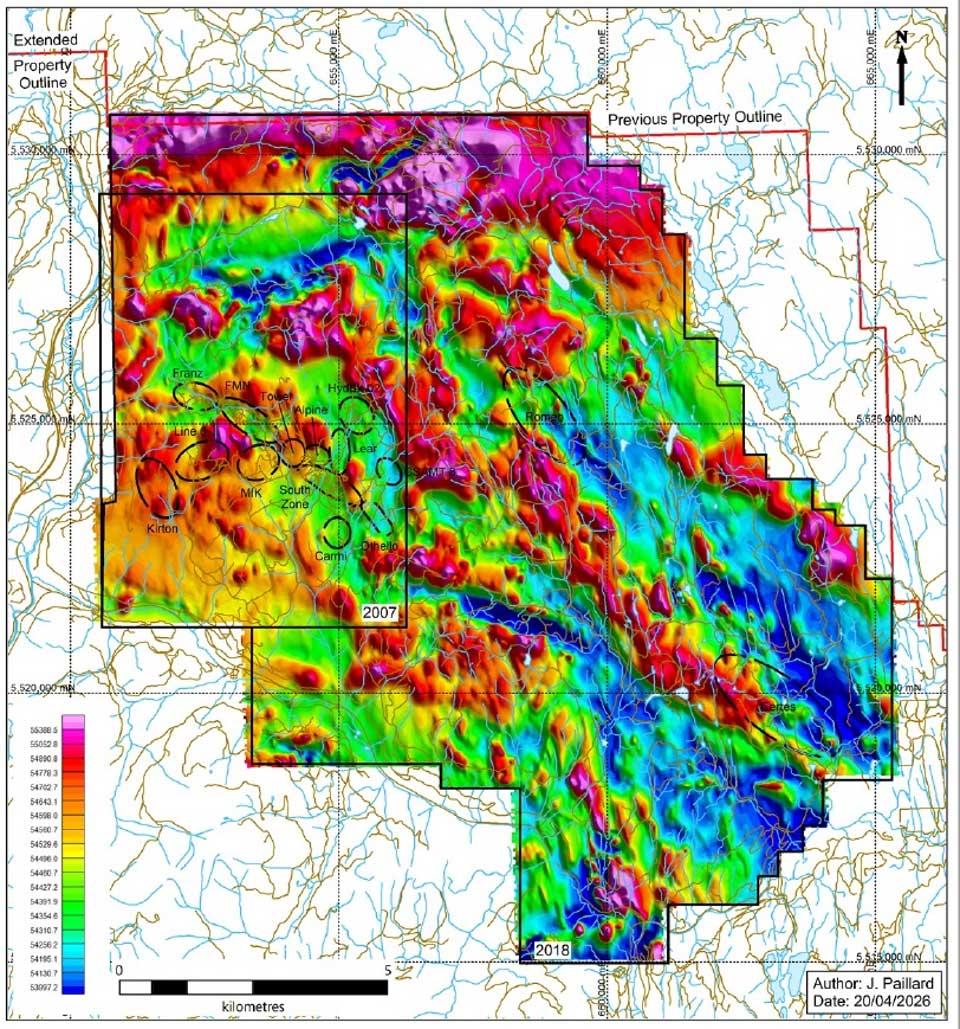

Shovelnose Property – merged 2018 and 2026 airborne magnetic data with areas of interest

Shovelnose Property – merged 2018 and 2026 airborne magnetic data with areas of interest

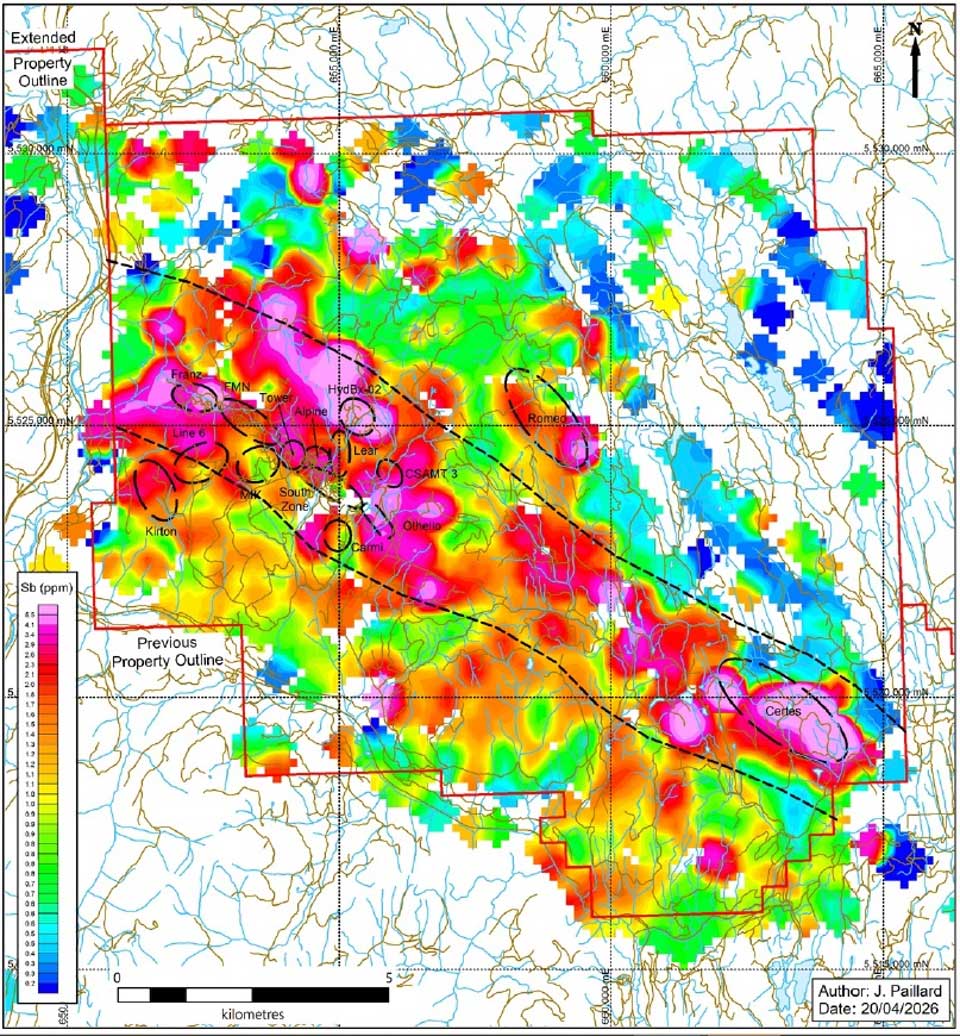

Antimony in Rock Samples

Antimony in Rock Samples

Project Economics & Mineral Resources

Summary Table - Economic Sensitivity to Long Term Gold Price

Long Term Metal Price Variability Corresponding Gold Price After Tax NPV (at 6%) After Tax IRR
(percentage change) US$/ounce CDN $ millions (%)
-20% 1,920 284.3 30.4
-10% 2,160 369.1 36.9
base case 2,400 453.7 43.2
+10% 2,640 538.3 49.5
+20% 2,880 622.8 55.7

The Company cautions that the results of the PEA are preliminary in nature and include Inferred Mineral Resources that are considered too speculative geologically to have economic consideration applied to them to be classified as Mineral Reserves. There is no certainty that the results of the PEA will be realized. Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability.

Preliminary Economic Assessment Highlights:

*Base case parameters of US$2,400 per ounce gold, US$28 per ounce silver and CDN$/US$ exchange rate of $0.72.

*All costs are in Canadian dollars unless otherwise specified.

Robust financial metrics.

  • Pre-tax Internal Rate of Return (“IRR”) of 56.3%; After-tax IRR of 43.2%.
  • Low All-In Sustaining Cost (“AISC”) of $1,161/ounce (“oz”) (US$836/oz) gold equivalent (“AuEq”).
  • Low Cash Cost of $872 oz/AuEq (US$ 628/oz AuEq).
  • Pre-tax Net Present Value (“NPV”6%) of $730 million (M) and After-tax NPV of $454M.
  • Payback period from start of production year at 1.7 years pre-tax and 2.1 years after-tax.

Low capital-intensive development and operating costs.

  • Total Preproduction Capital of $184M.
  • Total Life of Mine (“LOM”) Capital Costs of $379M.
  • Average operating cost of $142/ tonne processed.
  • 92% of total stope mining is cost effective longitudinal and traverse longhole stoping, with only 8% of total mining requiring cut and fill stoping.

11.1-year mine life and ability to expand processing to accommodate satellite discoveries.

  • 718,600 total Indicated ounces AuEq underground Mineral Resource Estimate.
  • 292,000 total Inferred ounces AuEq underground Mineral Resource Estimate.
  • Production rate of 1,000 tonnes per day (“tpd”).
  • Total payable metals of 637,000 oz Au and 3,562,000 oz Ag.
  • Average annual production of 56,000 oz Au, peaking in year 7 at 68,000 oz Au.
  • Total mineralized rock production of 4,159,000 tonnes at 5.26 g/t Au and 32 g/t Ag.
  • Metallurgical recoveries of 91.5% Au and 92.9% Ag.

Community/stakeholder benefits.

  • Total projected income taxes paid of $284M.
  • Total projected British Columbia mineral taxes paid of $163M.
  • More than 130 well-paying local full time jobs created during life of mine.
  • Additional employment during construction phase.
  • Indirect spin-off benefits during both construction and mine operations.

Mineral Resources, Updated PEA Preparation and Results

Details of the current underground Mineral Resource Estimates (“MRE’s”) for the South Zone, FMN and Franz deposits, as determined by P&E Mining Consultants Inc. (“P&E”) were reported as part of the 2025 PEA.  The MRE’s were estimated on the basis of a database including, among other information, 355 surface drill holes, totalling 121,971m.  A total of 145 drill holes (50,714m) were intersected by the mineral resource wireframes used in the 2025 PEA.

P&E validated the Mineral Resource database in GEMS™ by checking for inconsistencies in analytical units, duplicate entries, interval, length or distance values less than or equal to zero, blank or zero-value assay results, out-of-sequence intervals, intervals or distances greater than the reported drill hole length, inappropriate collar locations, survey and missing interval and coordinate fields. Some minor errors were identified and corrected in the database.

Block models were constructed using GEOVIA GEMS™ V6.8.4 modelling software and consist of separate model attributes for estimated Au, Ag and AuEq grade, rock type (mineralization domains), volume percent, bulk density, and classification. The Mineral Resource was classified as Indicated and Inferred based on the geological interpretation, variogram performance and drill hole spacing. The QPs also consider mineralization at the South, Franz and FMN Zones to be potentially amenable to underground mining methods. The revised MRE used for the 2025 PEA were reported with an effective date of February 28, 2025 and is tabulated in Table 1.

Table 1 - Shovelnose Underground Mineral Resource Estimate @ 1.3 g/t AuEq Cut-off (1-7)

Classification Zone Tonnes
(k)
Au
(g/t)
Contained Au
(k oz)
Ag
(g/t)
Contained Ag
(k oz)
AuEq
(g/t)
Contained AuEq
(k oz)
Indicated South 3,107 6.18 616.8 33.1 3,302.8 6.56 655.2
Franz 89 7.44 21.2 30.9 88.0 7.80 22.2
FMN 241 5.07 39.2 22.5 173.7 5.33 41.2
Total 3,437 6.13 677.2 32.3 3,564.5 6.50 718.6
Inferred South 1,386 3.79 168.6 16.5 736.8 3.98 177.2
Franz 63 3.48 7.1 51.9 105.4 4.09 8.3
FMN 843 3.49 94.6 37.5 1,017.3 3.93 106.5
Total 2,292 3.67 270.3 25.2 1,859.5 3.96 292.0

View Notes [+]

In completing the 2025 PEA, a financial model was developed to estimate the Life of Mine (“LOM”) plan and considered only underground mining of Mineral Resources at the South, Franz and FMN Zones. Other known gold-silver mineralization at the Shovelnose property, currently being evaluated by Westhaven, were not included.

The LOM plan covers a 13.1-year period (2 years pre-production and 11.1 years of production). Currency is in Q1 2025 Canadian dollars unless otherwise stated. Inflation has not been considered in the financial analysis.

The Updated PEA outlines a production mine life of 11.1 years with average annual production of 56,000 ounces gold and 312,000 ounces silver at average respective cash costs and all-in sustaining costs ("AISC") per ounce gold equivalent of $1,161(US$836). The PEA considers the payable recovery of 637,000 oz gold and 3,562,000 oz silver from an underground operation, at average respective mine production grades of 5.26 g/t and 32 g/t.

Drilling Highlights

In partnership with Dundee Corporation, Westhaven has launched its largest drill program to date at Shovelnose — a 50,000m program utilizing up to four active drill rigs across the property.

This 2026 program will consist of approximately 35,000m of resource infill drilling at the South Zone in support of a pre-feasibility study of the deposit, and approximately 15,000m of property-wide exploration drilling.

Up to the end of 2025, Westhaven has completed approximately 572 drill holes totaling over 194,000m at Shovelnose since 2011.

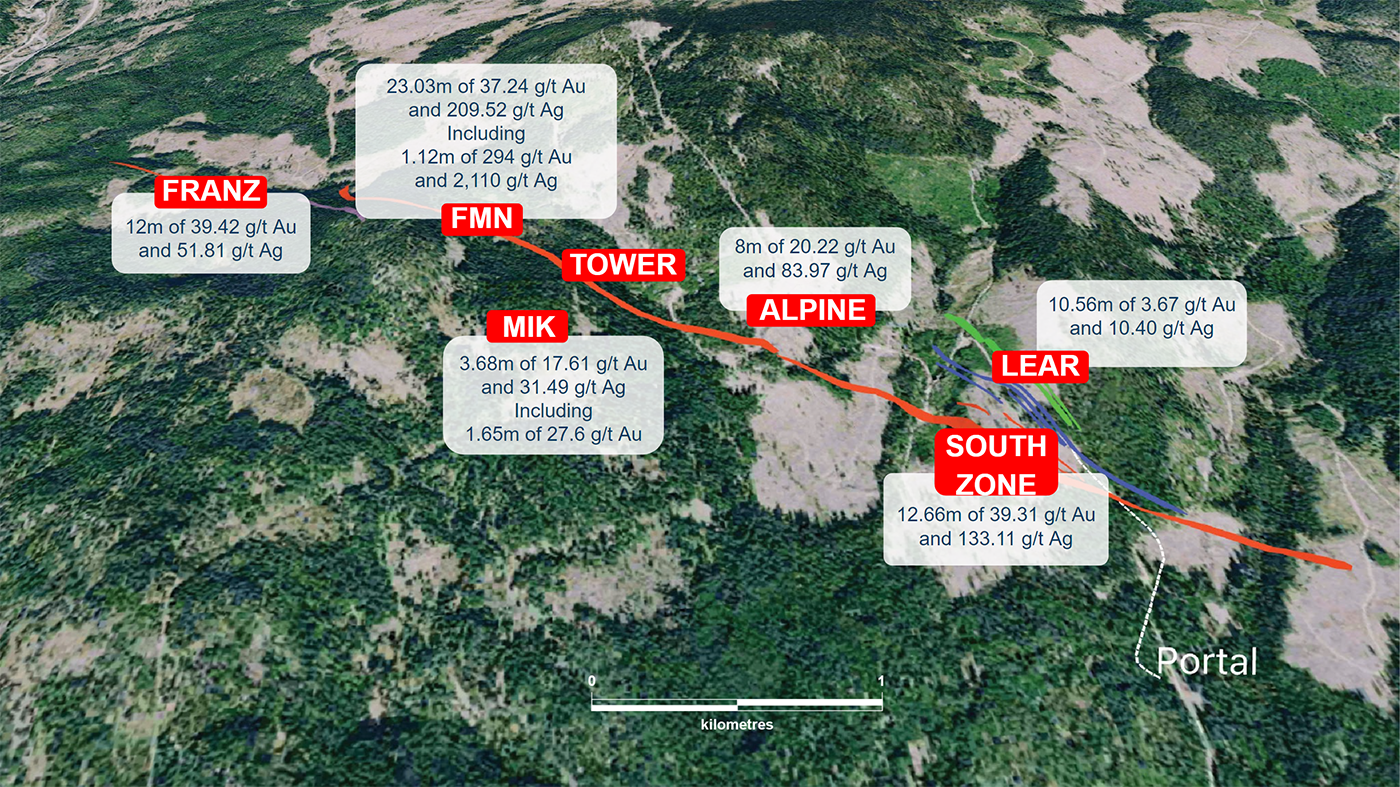

Significant Drill Intercepts

Selected highlights from across the program include:

SN18-14
17.7 metres
24.5 g/t Au
108 g/t Ag
SN19-01
12.7 metres
39.3 g/t Au
133 g/t Ag
SN19-11
1.0m metres
557.0 Au
381 g/t Ag
SN22-212 (FMN Zone):
23.0 metres
37.0 g/t Au
210 g/t Ag
SN22-333 (Franz Zone):
12.0 metres
52 g/t Ag
SN22-333 (Franz Zone):
6.2 metres
92 g/t Ag
SN25-442 (South Zone):
70.8 metres
1.1 g/t Au
14 g/t Ag
SN25-442 (South Zone):
8.0 metres
6.2 g/t Au
90 g/t Ag
